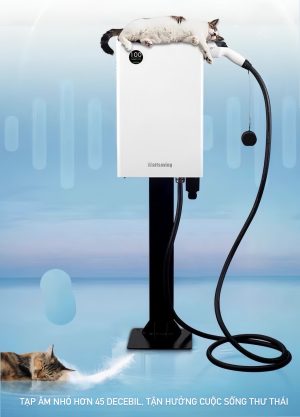

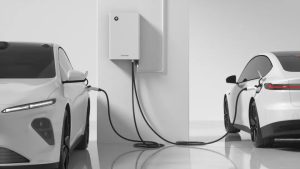

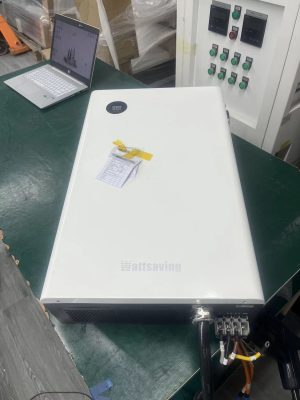

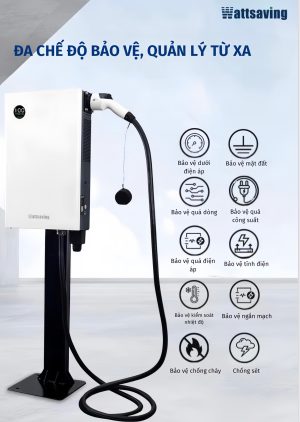

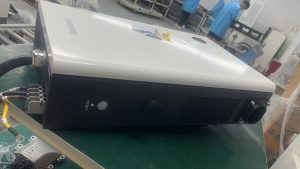

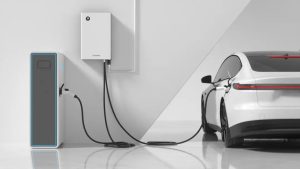

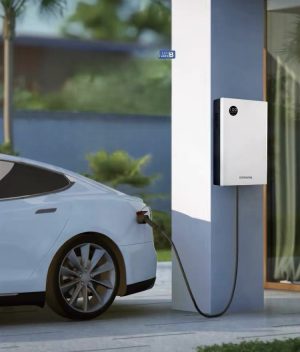

Trạm DC – T22 Wattsaving
Original price was: 125.000.000₫.98.990.000₫Current price is: 98.990.000₫.
| Product number | Energy Efficiency T22 B |
| product name | 22kW Intelligent DC Pile |
| Reference Standard | GB/T 18487.1-2015, GB/T 27930-2015, NB/T 33001-2018, NB/T33008.1-2018 |
| Input voltage range | 323~500Vac, 380Vac Type |
| working frequency | 45-55Hz |
| Output Power | 22000W MAX |
| The output voltage | 200~1000Vdc |
| Output current | 65A MAX |
| efficiency | ≥94% |
| Standby power consumption | ≤12W |
| Working temperature/humidity | -30℃~65℃/5%~95% |
| Storage temperature | -40℃~80℃ |
| degree of protection | IP54 |
| working altitude | ＜2000m |
| Charging Cable Length | 5m |
| body size | 393*630*145mm |
| Column size | 300*1305*300mm |
| product weight | 33kg (including packaging) |
| HMI | LCD color screen (not touchable) |
| installation method | wall-mounted/post-mounted |
| noise control | The noise is about 45dB in silent mode (test data in the laboratory) |
Còn hàng
Mô tả
| Product number | Energy Efficiency T22 B |
| product name | 22kW Intelligent DC Pile |
| Reference Standard | GB/T 18487.1-2015, GB/T 27930-2015, NB/T 33001-2018, NB/T33008.1-2018 |
| Input voltage range | 323~500Vac, 380Vac Type |
| working frequency | 45-55Hz |
| Output Power | 22000W MAX |
| The output voltage | 200~1000Vdc |
| Output current | 65A MAX |
| efficiency | ≥94% |
| Standby power consumption | ≤12W |
| Working temperature/humidity | -30℃~65℃/5%~95% |
| Storage temperature | -40℃~80℃ |
| degree of protection | IP54 |
| working altitude | ＜2000m |
| Charging Cable Length | 5m |
| body size | 393*630*145mm |
| Column size | 300*1305*300mm |
| product weight | 33kg (including packaging) |
| HMI | LCD color screen (not touchable) |
| installation method | wall-mounted/post-mounted |
| noise control | The noise is about 45dB in silent mode (test data in the laboratory) |
